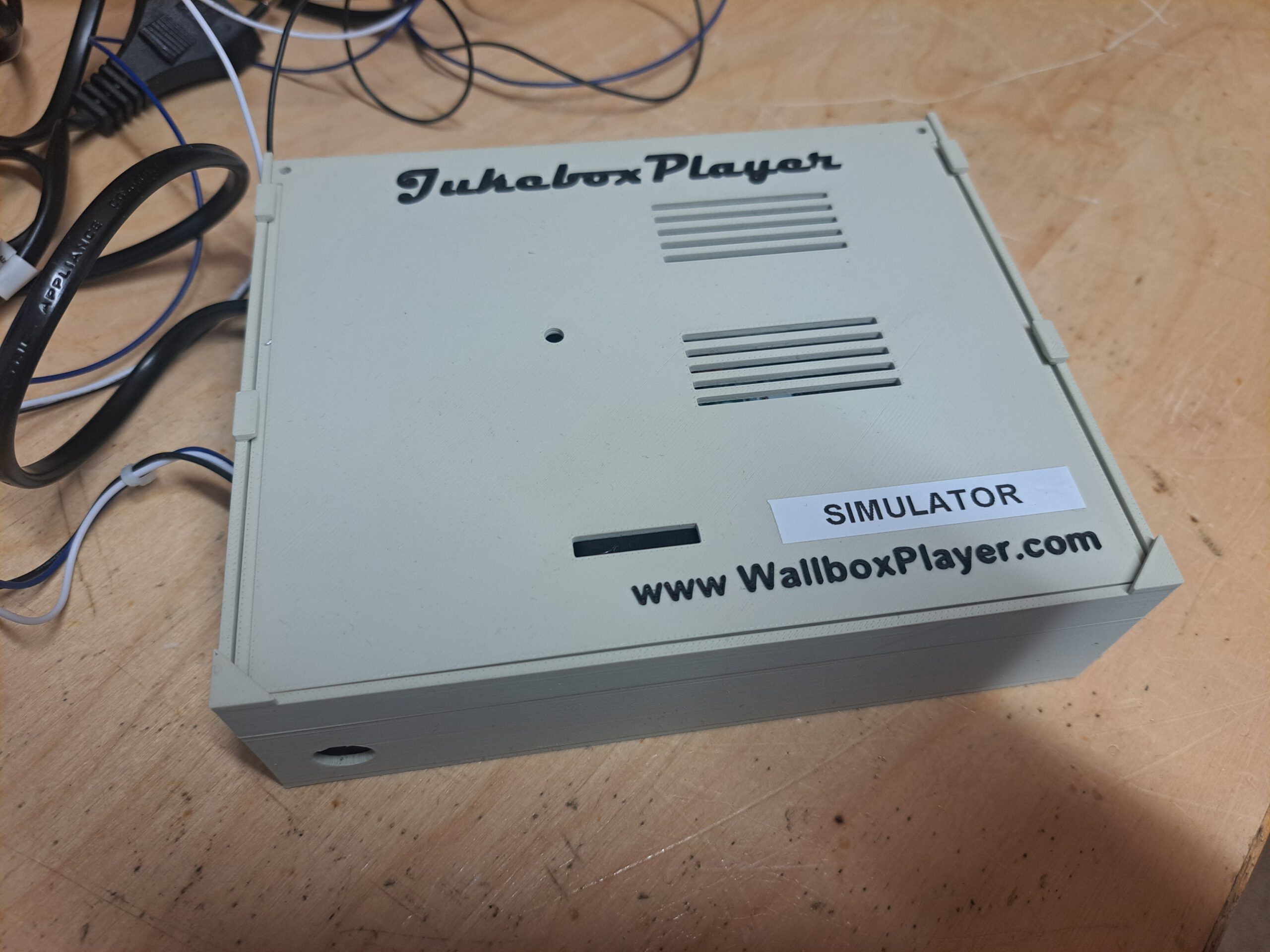

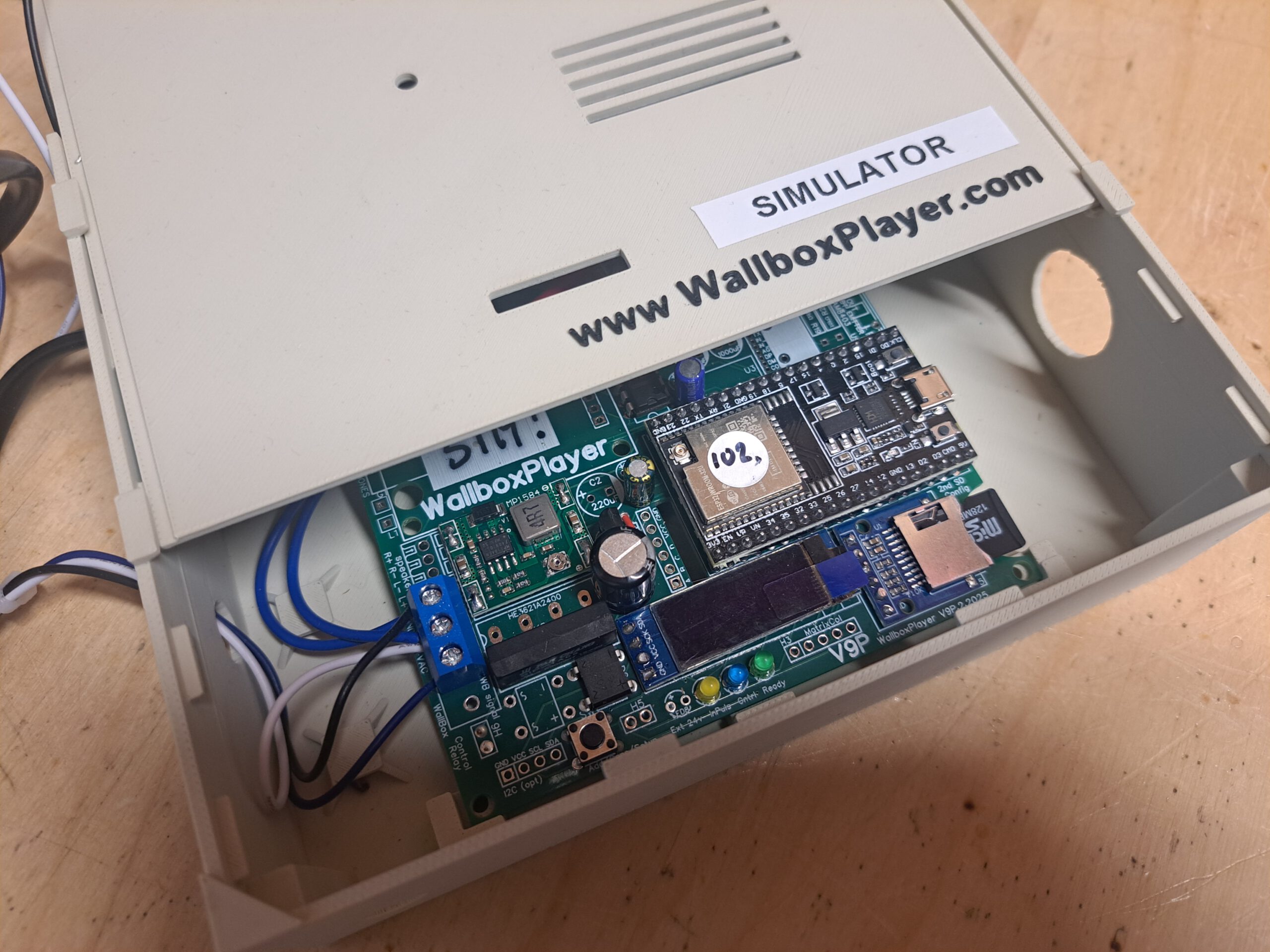

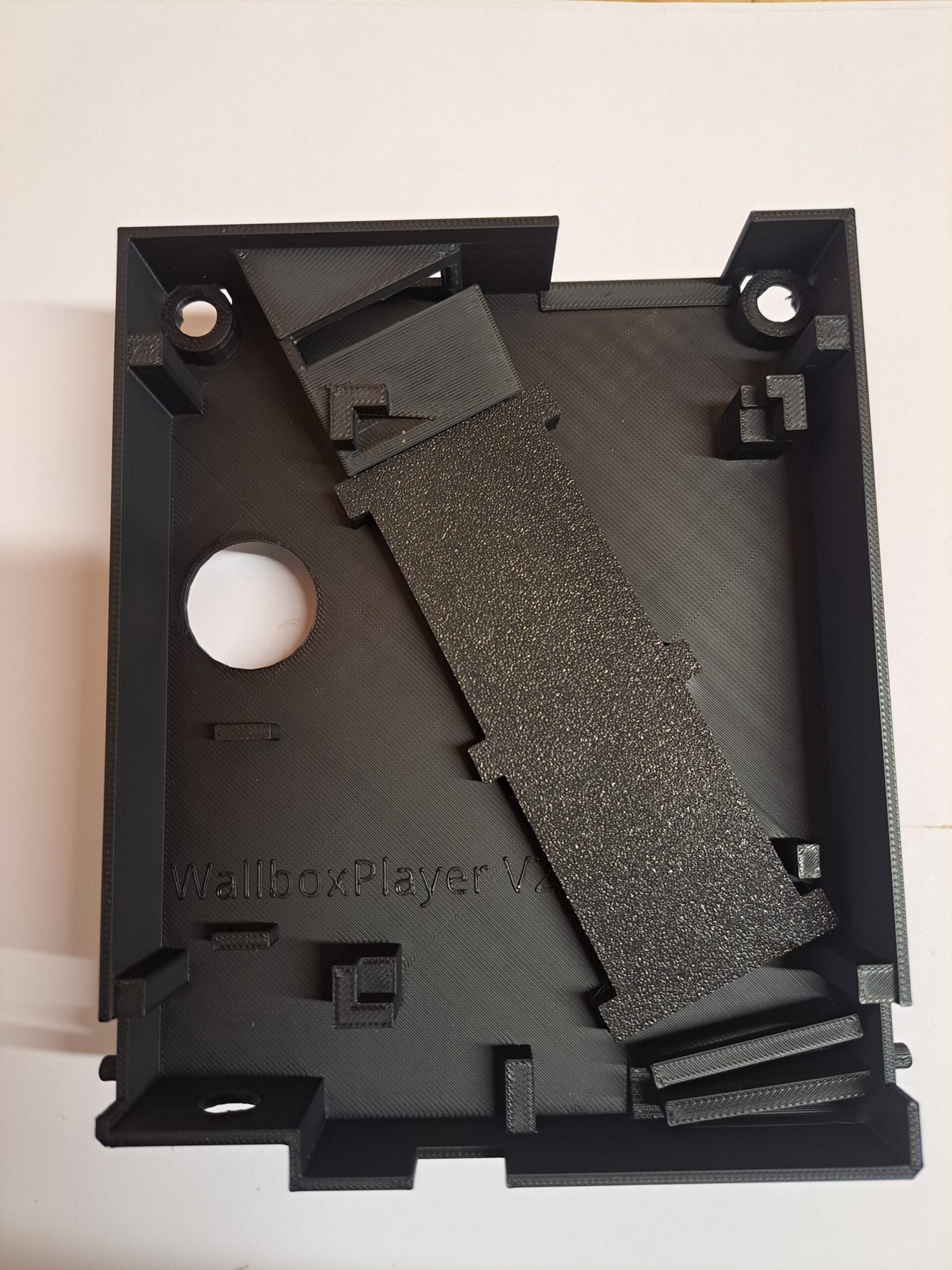

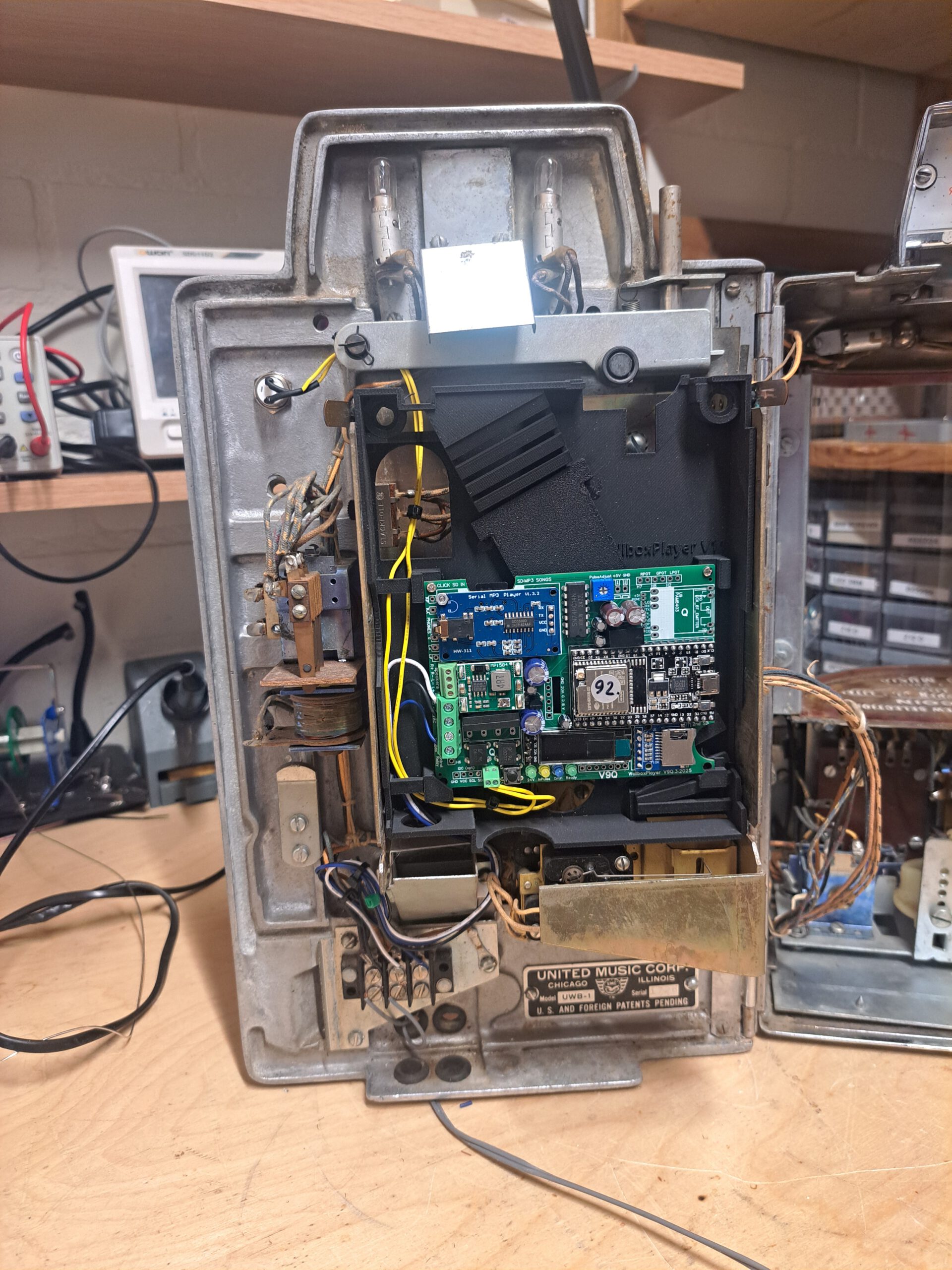

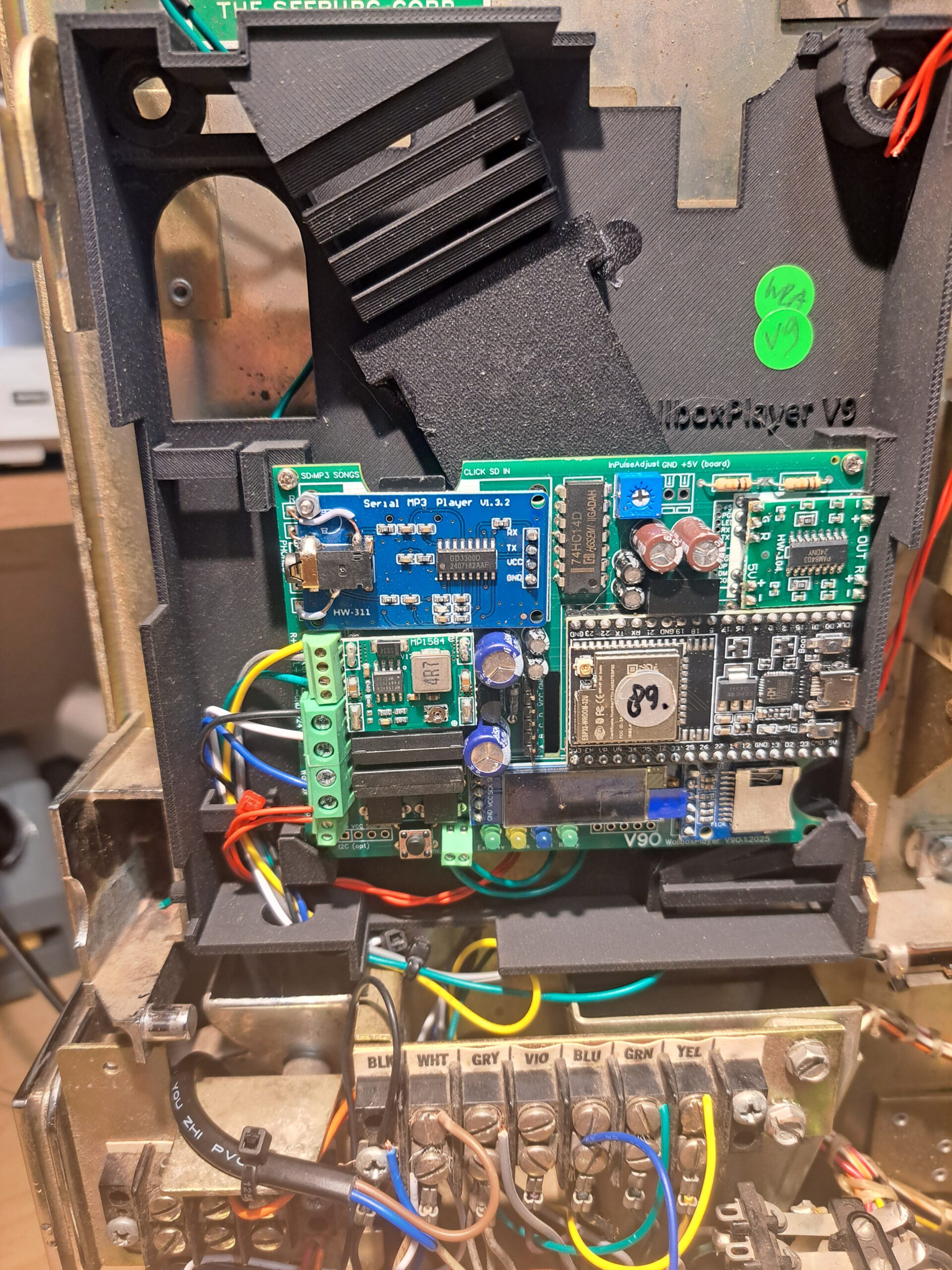

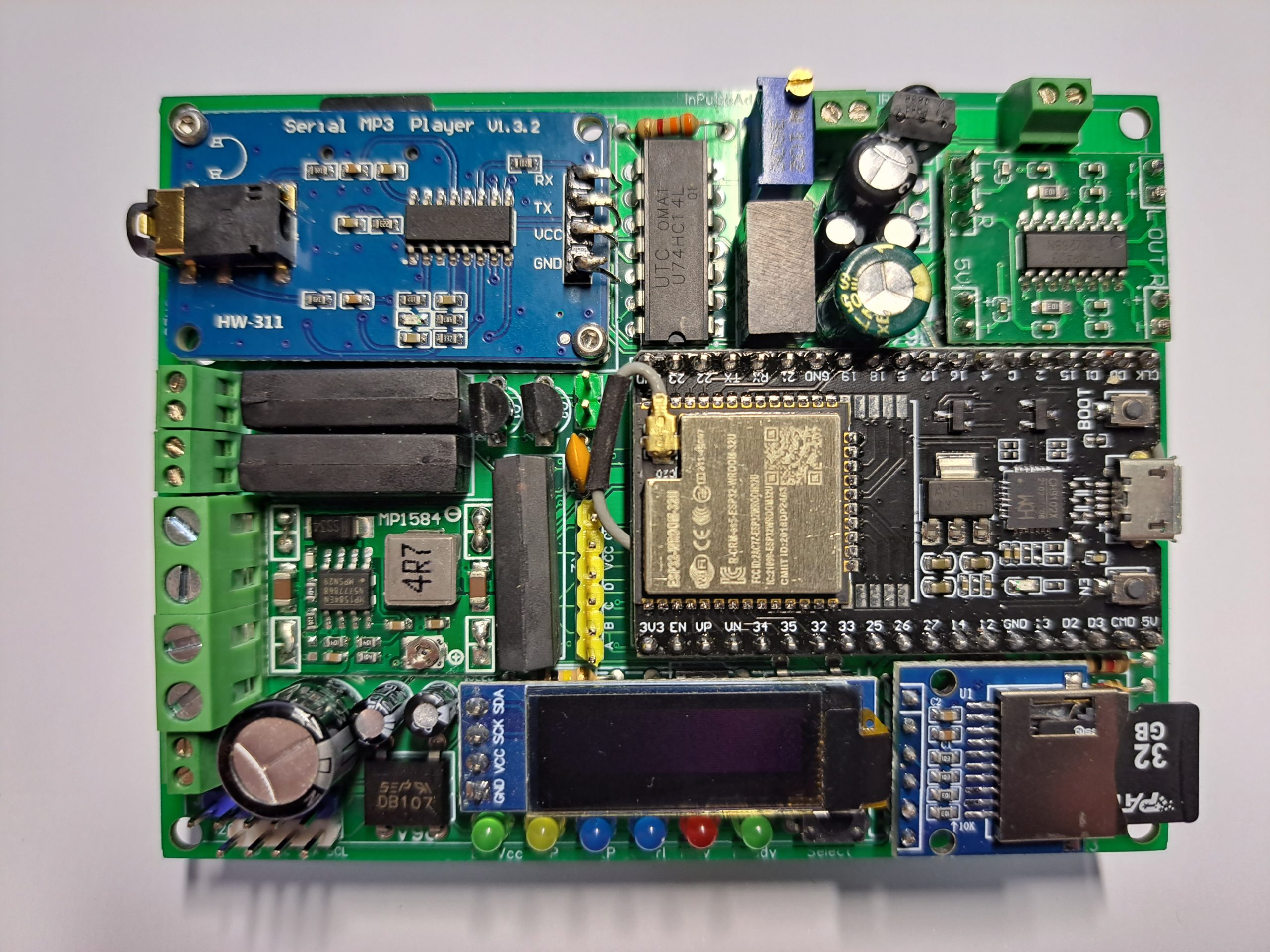

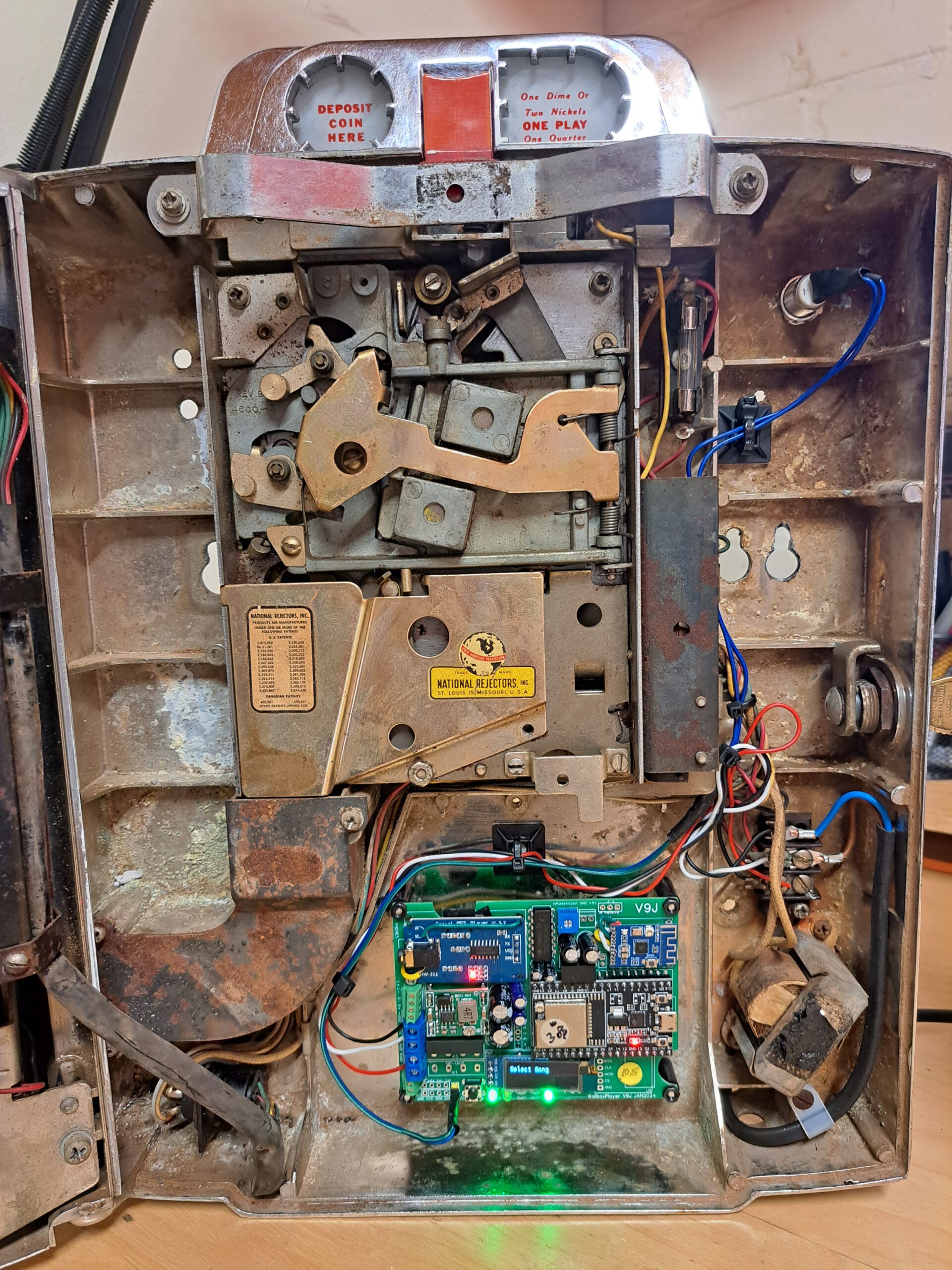

The WallboxPlayer is a module that will fit into most wallboxes (size: 7x10cm) and can be delivered in easily mountable replacement coin unit. Use the wallbox button selection to play your selected MP3 (or WAV) songs as stored on the SD card.

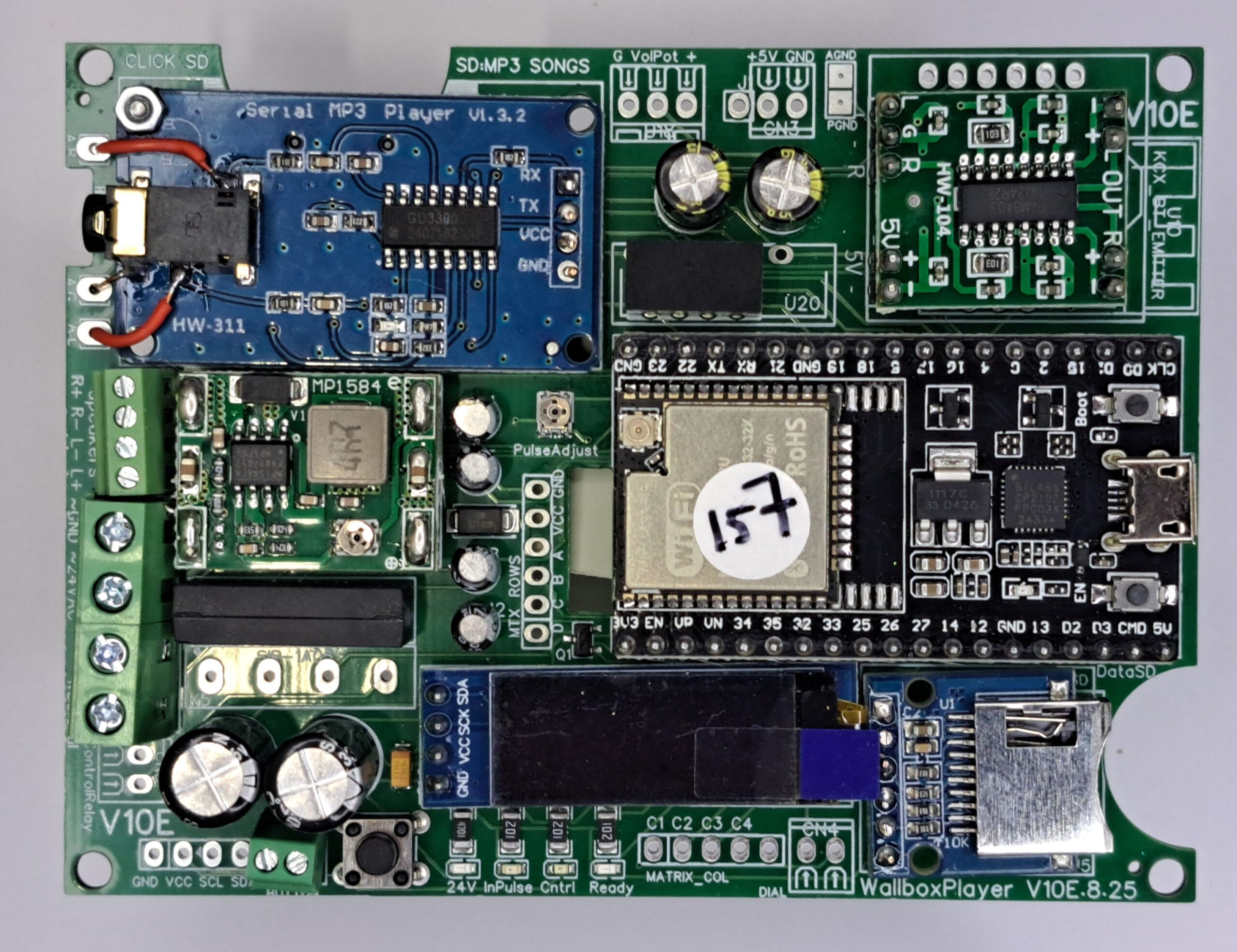

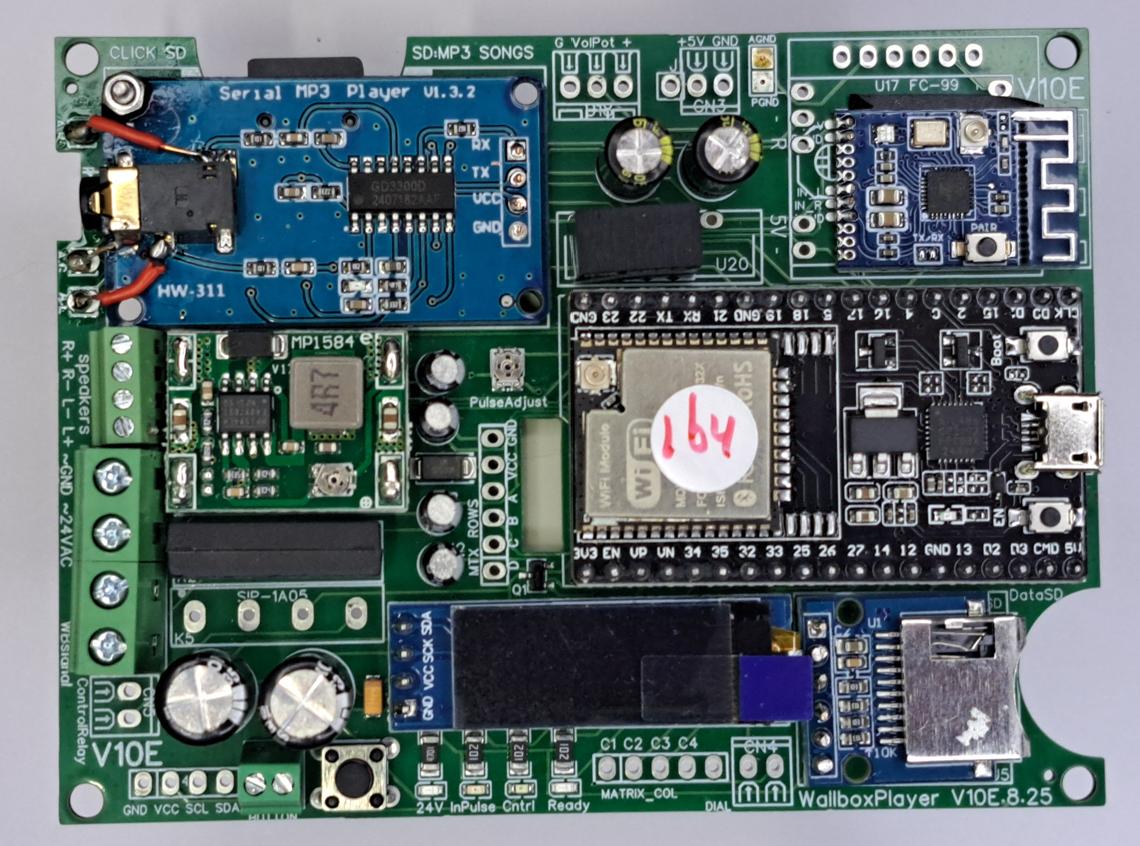

There are versions with a 2x3W amplifier for small (internal) speakers -OR- a with Bluetooth; these versions also have parallel 3.5mm jack audio out. There is also a basic version with jack audio only.

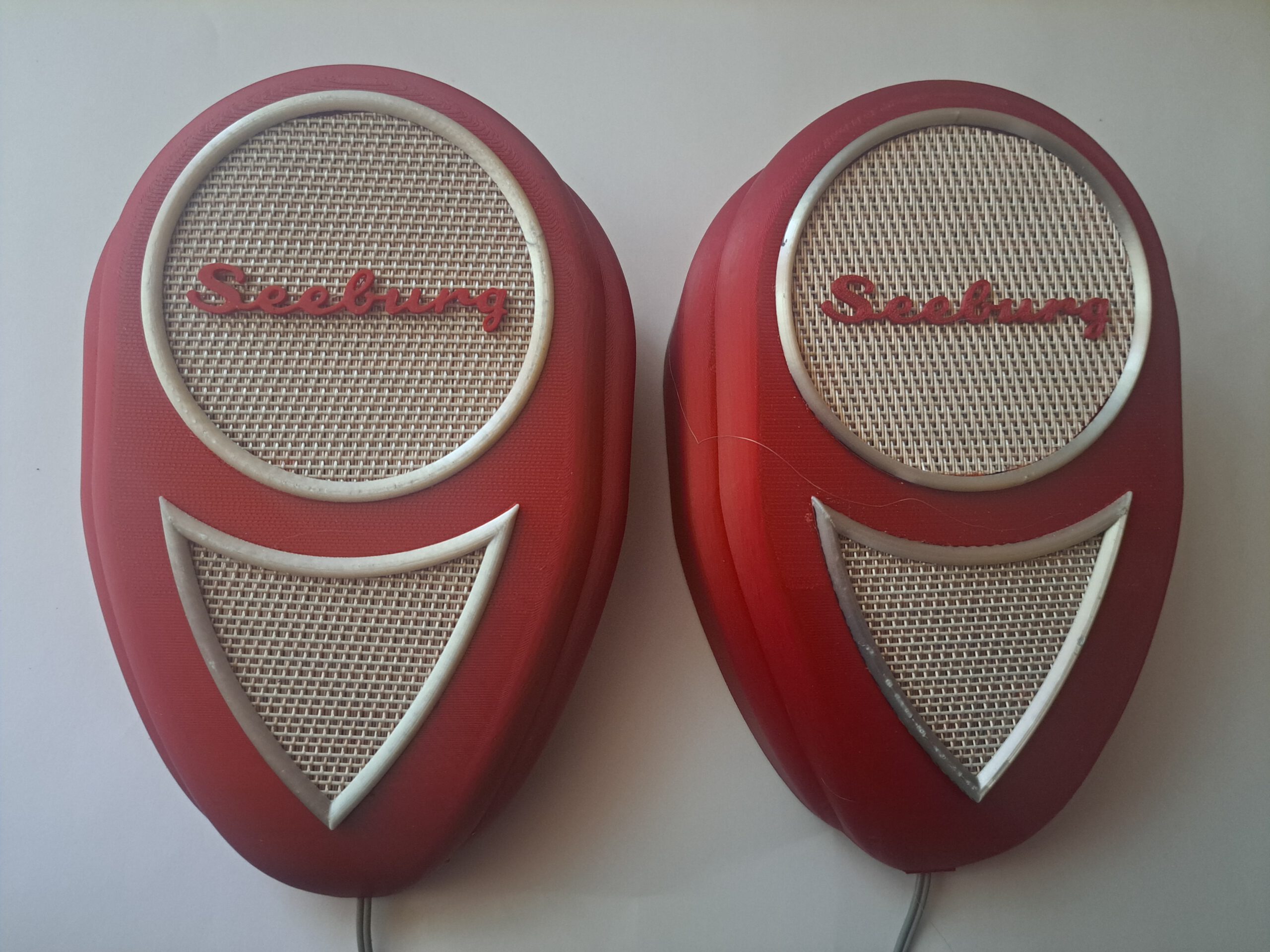

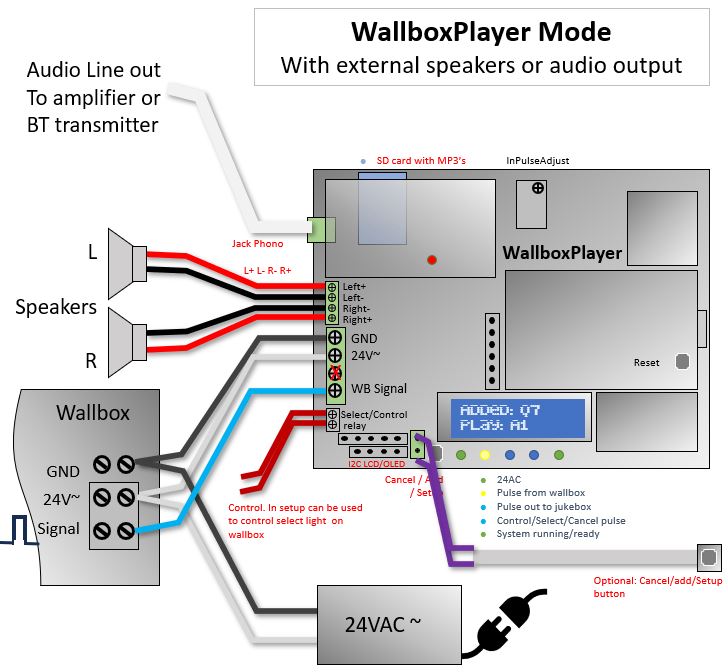

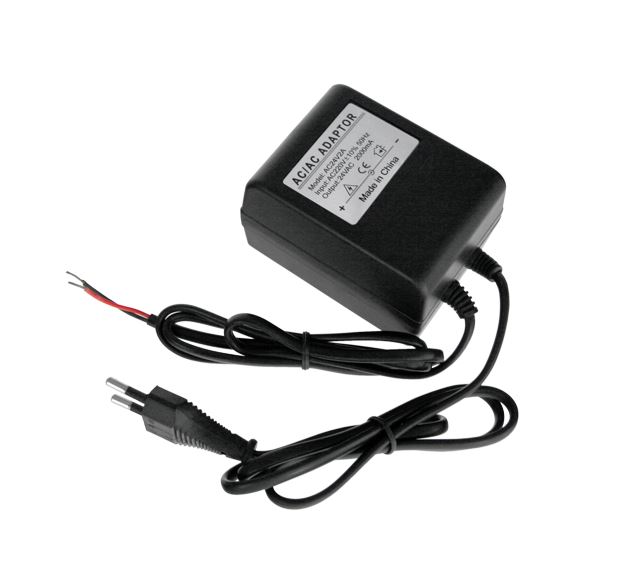

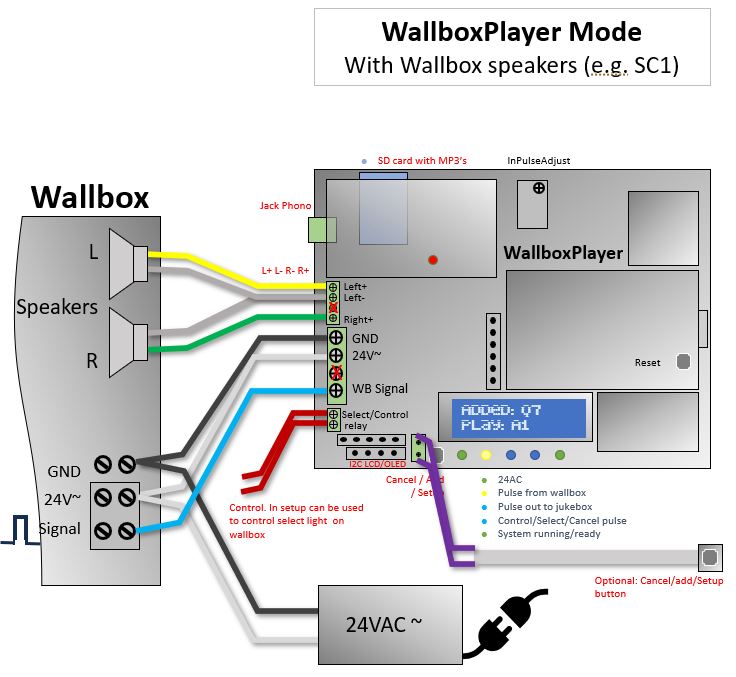

The Wallbox requires 24AC to work (AC/AC transformer). The module will use the 24V AC to supply board and drive output/speakers (internal if present e.g.for Seeburg Consolette/DEC). Alternatively, the 24V from a jukebox can be used.

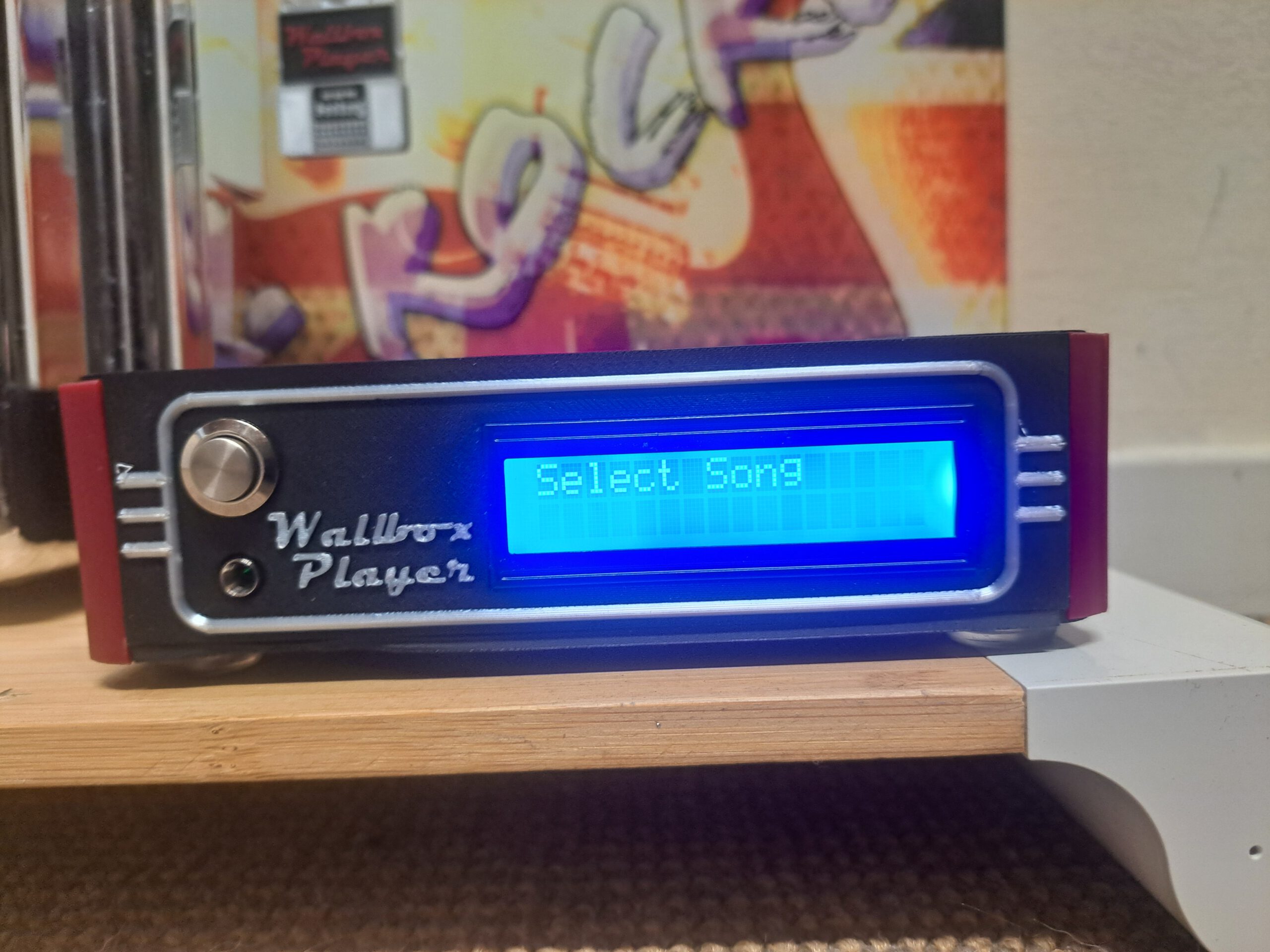

The player will add selected songs to the queue (or a random number); if selected, or after some time randomly. Options: external display showing song being played/selected and external volume control.

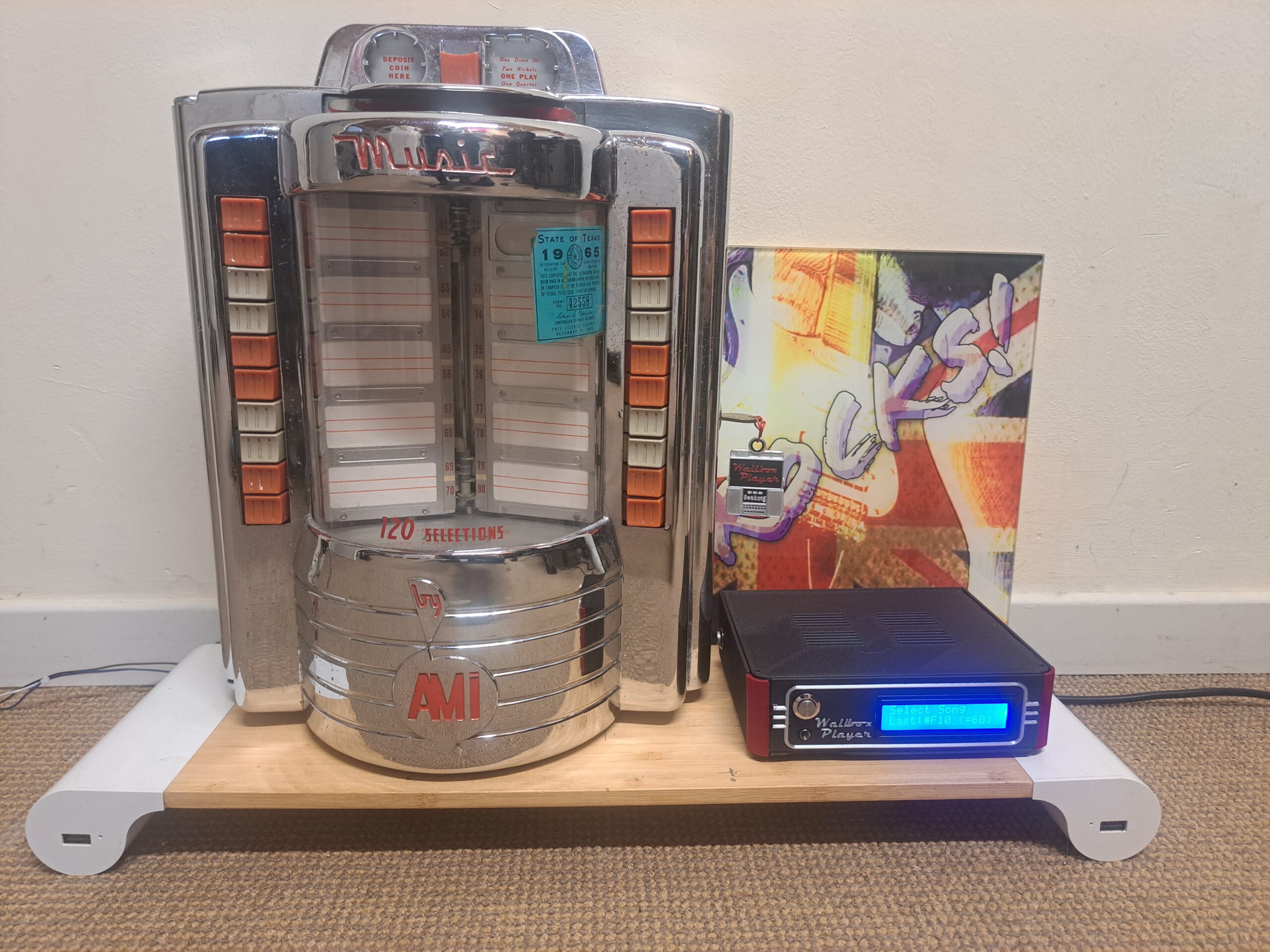

In operation, in a living room, mancave or otherwise, after selecting a song with the buttons, the WallboxPlayer will play the corresponding song (internal speakers OR external, BlueTooth*; all versions have audio jack out). You can also select random play, continuous play or AlbumPlay. Please inquire about WiFi/WebApp features. * Bluetooth (5.1/4.1) pairs without code, works on most speakers.
